主要功能
采用獨創的板載芯片 LED 陣列技術，用 6 種不同波段的激發光作為測量光、光化光、飽和脈沖、單周轉飽和閃光與多周轉飽和閃光
具備比 PAM-2500 高 200 倍的靈敏度
優化設計用于很稀的懸浮液（藻液、葉綠體懸浮液）測量
專用葉夾可用于高等植物/大型海藻等葉片狀樣品的測量
標準的 PAM 測量功能、復雜的多相熒光上升動力學擬合分析、馳豫動力學分析
特別適合狀態轉換研究、“非活性PSII”（“Inactive PS II”）研究
超快時間分辨率達到 10 ms，由此利用獨特的 O-I1 相（O-J相）擬合分析用于分析PSII反映中心異質性分析，得出 PS II 光合單位的連接性參數（p和J），速率常數（Tau）和兩種不同類型 PS II（Type 1 和Type 2）的光學截面積（Sigma(II)λ）等參數
新增 PSII 有效光強 PAR(II)、經過 PSII 的絕對電子傳遞速率 ETR(II)λ 等全新的光合參數。
專業的操作軟件，用于復雜的擬合分析
測量參數
Fo, Fm, F, Fm', Fv/Fm, Y(II), qP, qN, NPQ, Y(NO), Y(NPQ), ETR, ETR(II)λ, p, J, Tau, Sigma(II)λ, PAR、PAR(II) 等
應用領域
主要用于各種藻類的深入光合作用機理研究，用適合的波長、全新的測量、全新的參數進行藍藻、綠藻、硅藻、甲藻、紅藻、隱藻等的深入研究。如選配高等植物附件，也可實現對高等植物葉片的測量。
主要技術參數
測量光：提供 400、440、480、540、590 和 625 nm 的脈沖調制測量光，20 個強度選擇，14 個頻率選擇。
光化光：提供 440、480、540、590、625 nm 和 420-640 nm（白光）連續光化光照，最大光強 4000 μmol m-2 s-1；單周轉飽和閃光的最大強度 200 000 μmol m-2 s-1，持續時間 5-50 μs可調；多周轉飽和閃光強度 10 000 μmol m-2 s-1，1-800 ms可調。
遠紅光：725 nm。
信號檢測：PIN-光電二極管，帶特制鎖相放大器（專利設計），最大時間分辨率 10 μs。
Multi-Color-PAM的功能介紹
光系統 II 的相對電子傳遞速率 rETR 是很常用的一個參數。rETR = PAR × Y(II) × ETR-factor，其中 ETR-factor 是指光系統II吸收的光能占總?cè)肷?PAR 的比例。在絕大多數已發表的文獻中，均沒有試圖去測定 ETR-factor，只是簡單地假定跟 “模式葉片” 相同，即有 50% 的 PAR 分配到光系統 II，84% 的 PAR 被光合色素吸收。因此在已有的文獻中，rETR一般是用公式 rETR = PAR × Y(II) × 0.84 × 0.5 來計算的。
近期，利用多激發波長調制葉綠素熒光儀 MULTI-COLOR-PAM 可以實現光系統II的絕對電子傳遞速率 ETR(II)λ 的測量。首先需要利用 MULTI-COLOR-PAM 測定某個波長下的光系統II功能性光學截面積 Sigma(II)λ（單位nm2）（其中λ為波長），然后求出光系統II的量子吸收速率 PAR(II) = Sigma(II)λ × L × PAR = 0.6022 × Sigma(II)λ× PAR。其中 L 為阿伏伽德羅常數，系數 0.6022 是將 1 μmol quanta m-2 （即 6.022 × 1017 quanta m-2）轉換為 0.6022 quanta nm-2，PAR(II) 的單位為 quanta/(PSII × s)。接下來就可以計算 ETR(II)λ = PAR(II) × Y(II)/Y(II)max，其中 Y(II)max 是經過暗適應達到穩態后的光系統II的量子產量，也就是 Fv/Fm×ETR(II) 的單位為 electrons/(PSII × s)。
傳統的調制葉綠素熒光儀一般只能提供一種或兩種顏色的光源，如發出白光的鹵素燈、發出藍光的藍色 LED 或發出紅光的紅色 LED 等。用不同顏色的光測量的結果可能會有不同，如圖 1A 所示，用藍光（440 nm）和紅光（625 nm）測量綠藻小球藻的快速光曲線有非常顯著的差別，藍光照射下的 rETRmax 顯著小于紅光照射下，且在較強的光曲線 rETR 有輕微下降趨勢，這說明藍光的更容易引發光抑制 (Schreiber, Klughammer et al. 2011, Schreiber, Klughammer et al. 2012)。由此可以推測，過去文獻報道的很過實驗結果，可能會存在由于采用的激發光源不同而引起的錯誤理解。
如上文所述，利用 MULTI-COLOR-PAM，已經可以測量絕對電子傳遞速率 ETR(II)λ。如果用 ETR(II)λ 來繪制快速光曲線會出現什么結果呢？圖 1B 是將圖 1A 的結果轉換成絕對電子傳遞速率后得到的結果，可以看出無論是照射藍光還是照射紅光，其絕對電子傳遞速率是一致的。由此證明圖 1A 中結果的差異是由于不同波長下藻細胞的光系統 II 功能性光學截面積 Sigma(II)λ 的大小不同引起的 (Schreiber, Klughammer et al. 2011, Schreiber, Klughammer et al. 2012)。這種利用絕對電子傳遞速率 ETR(II)λ 繪制的快速光曲線在未來的科研中可能會發揮越來越重要的作用。
 |  |

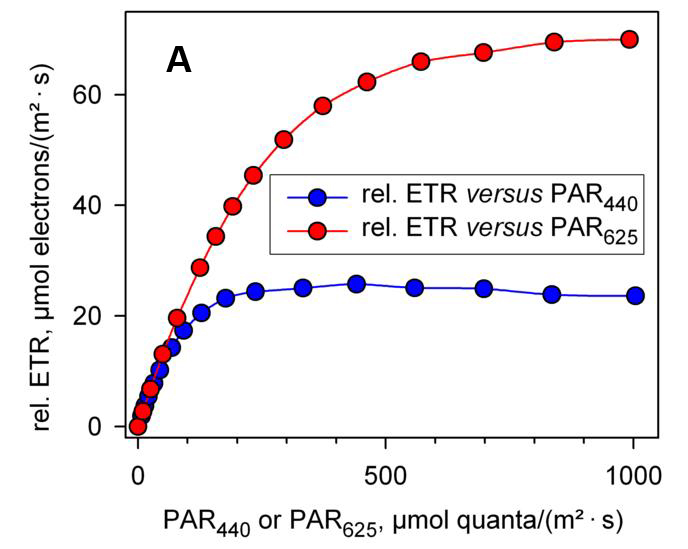

| 圖1 利用相對電子傳遞速率（A）和絕對電子傳遞速率（B）分別繪制的快速光曲線（引自Schreiber et al., 2012） | |
| 利用 MULTI-COLOR-PAM 分別以藍光（440 nm）和紅光（625 nm）作為光化光源，測量小球藻（Chlorella sp.）的快速光曲線。 | |
| 圖A中，rETR 的計算采用 0.42 作為 ETR factor。 | |

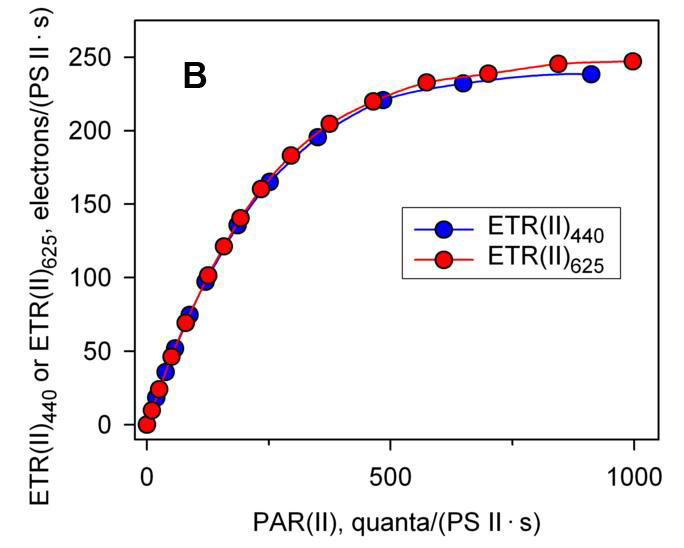

| 圖B中，藍光和紅光激發下獲得的光系統II功能性光學截面積 Sigma(II)λ 分別為 4.547 和 1.669 nm2，計算絕對電子傳遞速率 ETR(II)440 和 ETR(II)625 的 Fv/Fm 分別為 0.68 和 0.66。 | |
選購指南
一、懸浮樣品測量基本款

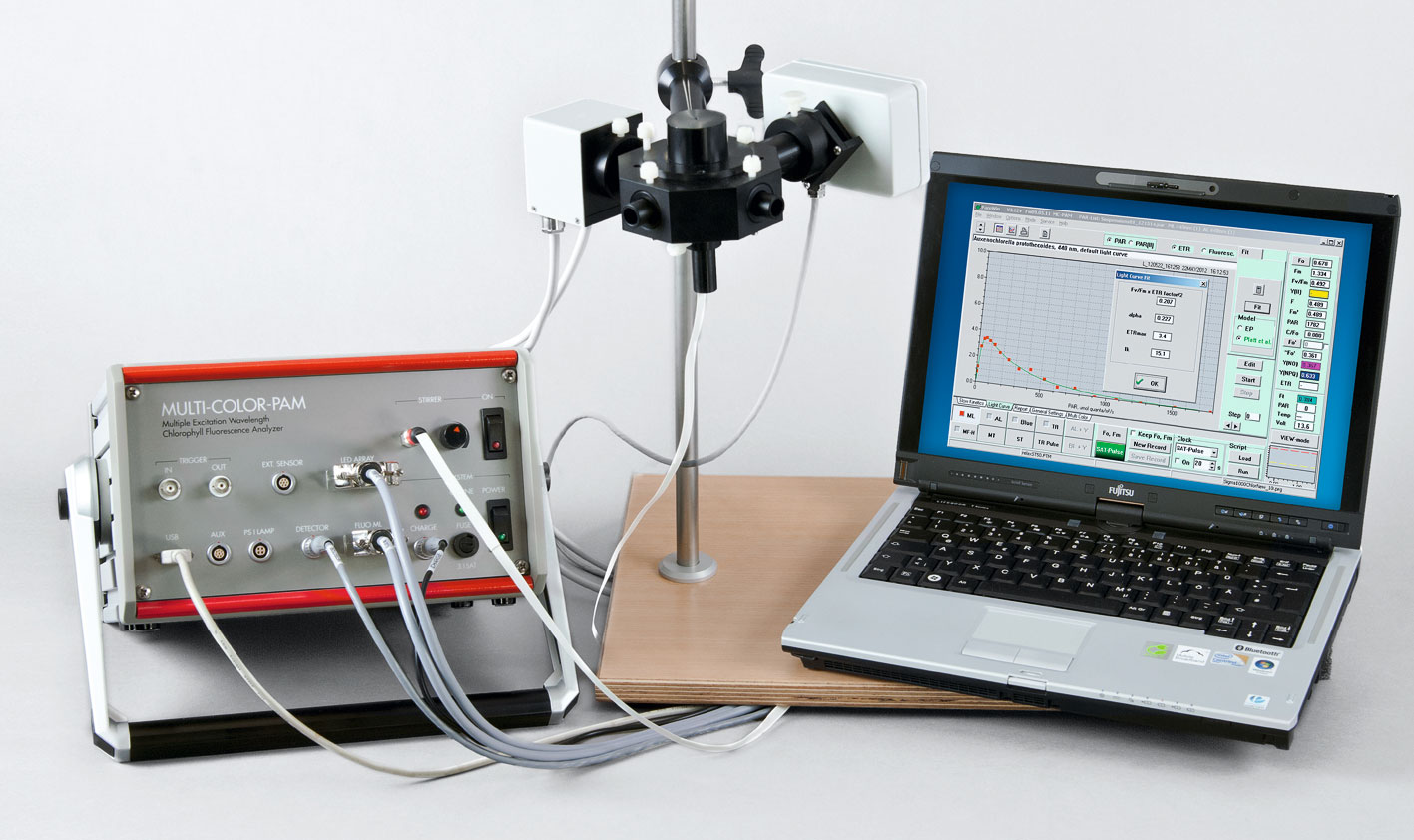

系統組成：通用型主機，標準版檢測單元，懸浮液的光學單元，數據線，工作臺，軟件等
 |
| 懸浮樣品測量基本款 |
二 、高等植物葉片測量基本款
系統組成：通用型主機，標準版檢測單元，特制葉片夾，數據線，工作臺，軟件等
 |

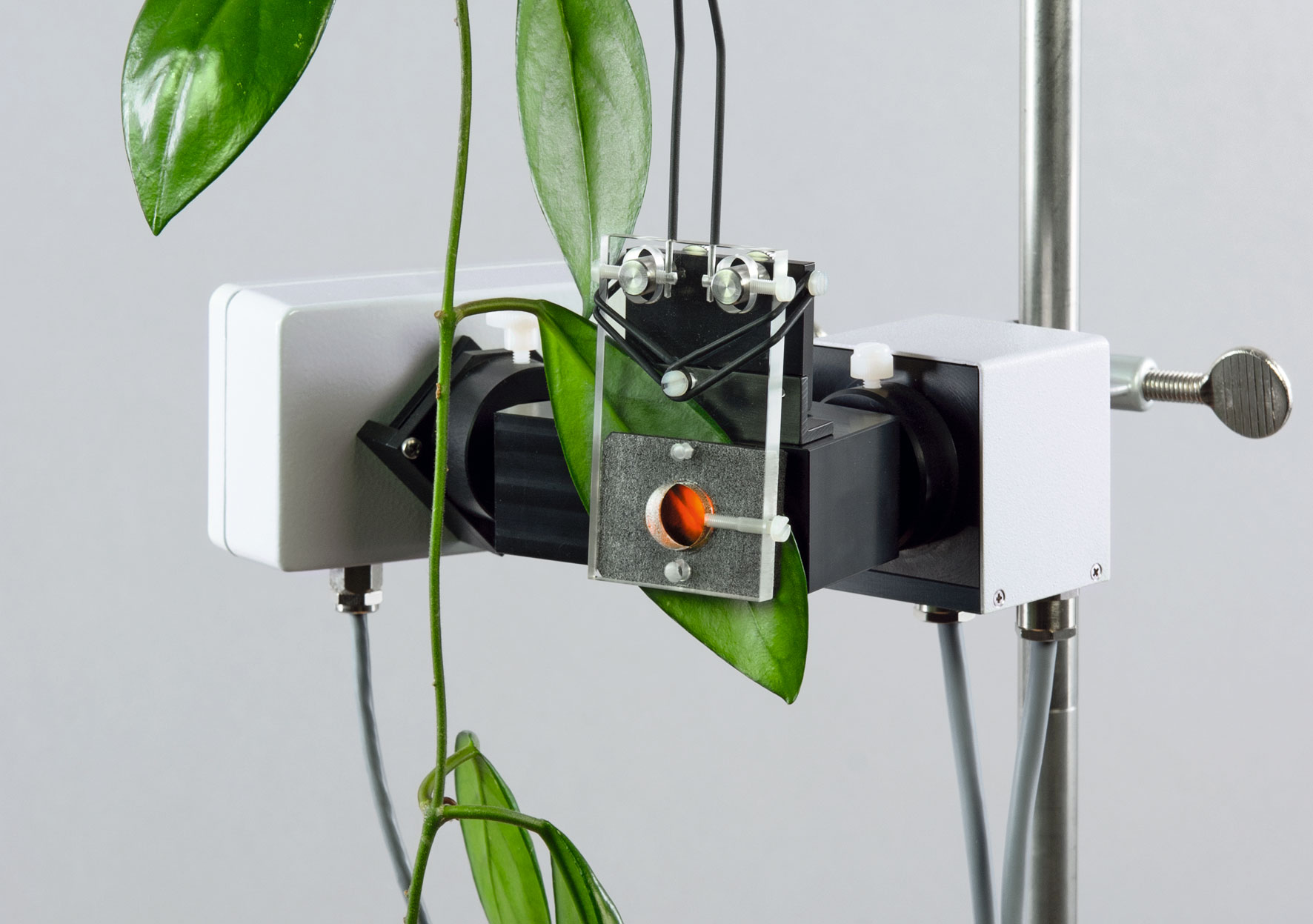

| 高等植物葉片測量特制葉夾 |
三、其他可選附件
1，ED-101US/T： 控溫裝置，安裝在 ED-101US/MD 上，為懸浮液控溫；可外接循環水浴來控溫,
2，US-SQS/WB： 球狀微型光量子探頭，可插入樣品杯中測量 PAR；由主機 DUAL-C 控制。
3，PHYTO-MS：磁力攪拌器，連接到光學單元 ED-101US/MD 的底部對懸浮液進行攪拌。
產地：德國WALZ
